Synopsis

I wanted to try an AdLib Music Synthesizer Card since the very early 1990s. But for some reason I never heard one and neither have I seen one. Maybe because Sound Blaster clones were already superseding AdLib cards back in 1993? I cannot say for sure. But I clearly remember seeing the AdLib option in the various Setup programs of the MS-DOS games of back then.

I got the PCB free of charge from Martin over the Czech Republic. A big thank you since if it were for me, the AdLib clone project would've waited for a longtime to reach an upper position on my electronics TODO list. But Martin helped to speed things up a bit. So here I am again making parts lists and searching left and right for components in my spare parts bin.

The construction of this card is straightforward and it took me only a couple of hours to solder every component. Instant gratification, if I may say it like that.

I plan to use this card with my 32-bit 80386DX ISA Single Board Microcomputer which is presented as a whole in System Design Assembled Machines.

Construction and Pictures

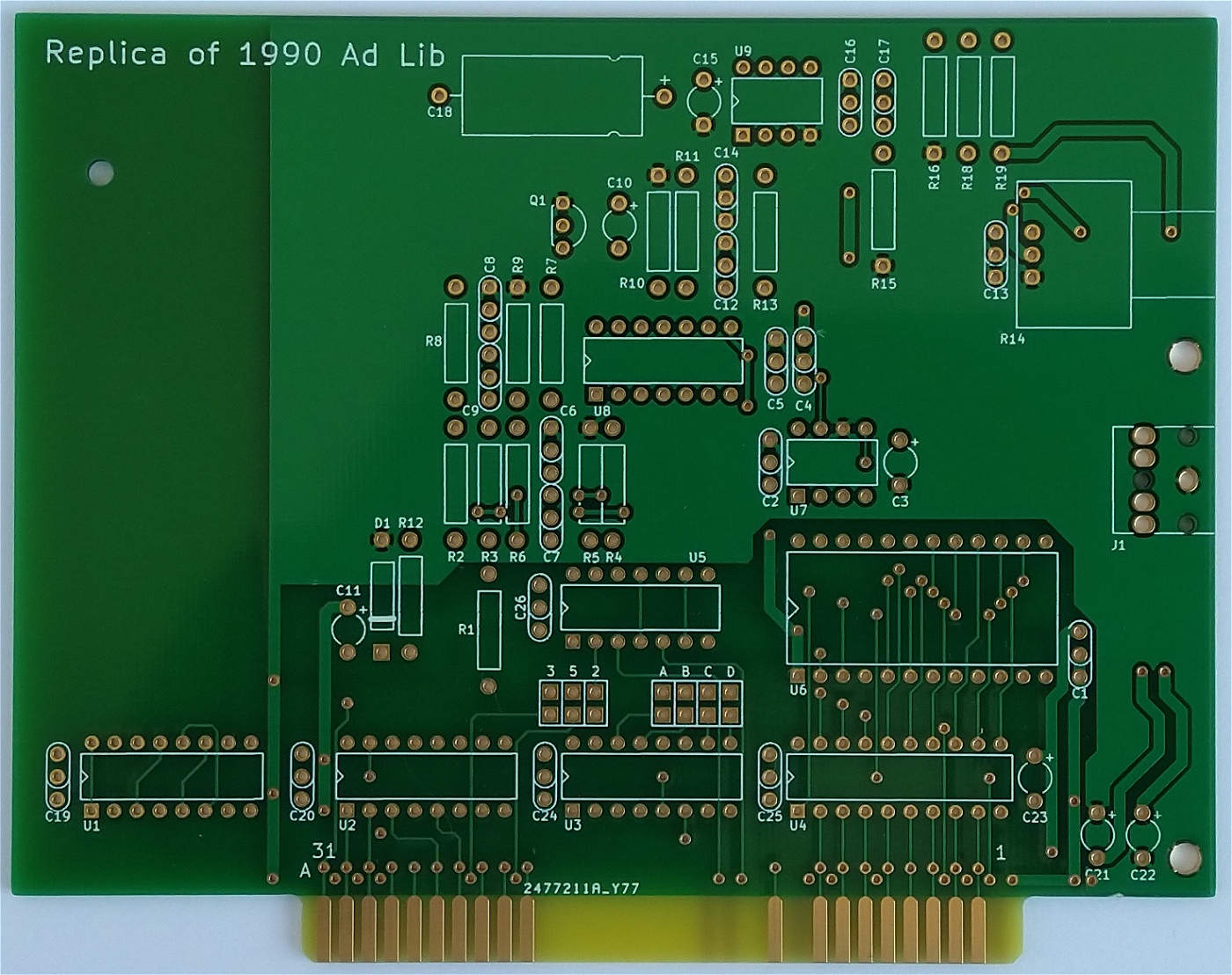

This 2-layer printed circuit board was made in China and has an ugly Factory identification code just above the ISA card edge connector. Also it is slightly bent on both x-axis and y-axis. Thus if you look at it into the light, from the edge, it appears to be slightly concave. Like a parabolic dish. Other than that it is rugged and well made. It also has some small scratches and dents but nothing bothering anyway.

My PCB variant does not have an AdLib logo and is just simply labeled as Replica of 1990 Ad Lib. Which is great. I like it like that.

The PCB layout is kind of brutal for my taste. But I know the author tried as much as possible to replicate the original design. In my opinion, compared to other ISA cards out there, the AdLib design was outdated even back in 1987 in terms of layout and overall execution. And the routing of the circuit traces... It appears that the original layout is a combination of human and computer auto-router.

But in the end the card looks nice and the PCB has a nostalgic feeling.

I decided to use whatever part I had lying around in my spare parts bin. I only bought some of the ICs, the potentiometer, the mounting bracket and a couple of capacitors. All the rest is salvaged from other computer or industrial PCBs.

Chances are you have never seen a Romanian built 1N4148 diode in a yellow-black color scheme. Or gray augat-class IC sockets. Or even film capacitors used for decoupling purposes. I bet you saw WIMA film capacitors but have you seen Siemens counterparts? They look almost like the WIMA parts. I like all electronic components that are quite uncommon and I try to use them whenever I can.

I remember that I recovered the gray IC sockets back in 2008 from an industrial computer PCB assembly. But I cannot really remember what that card was supposed to do anyway.

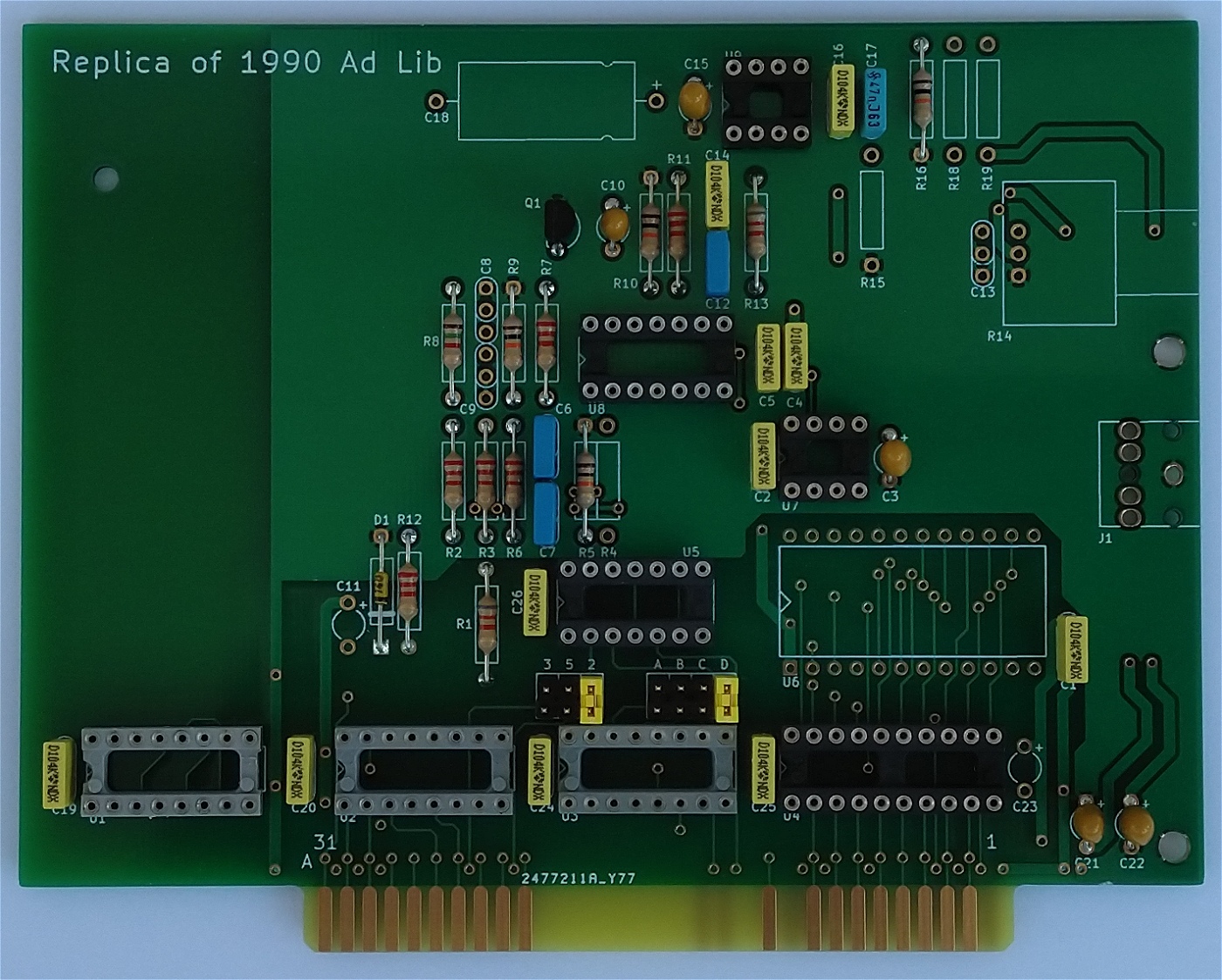

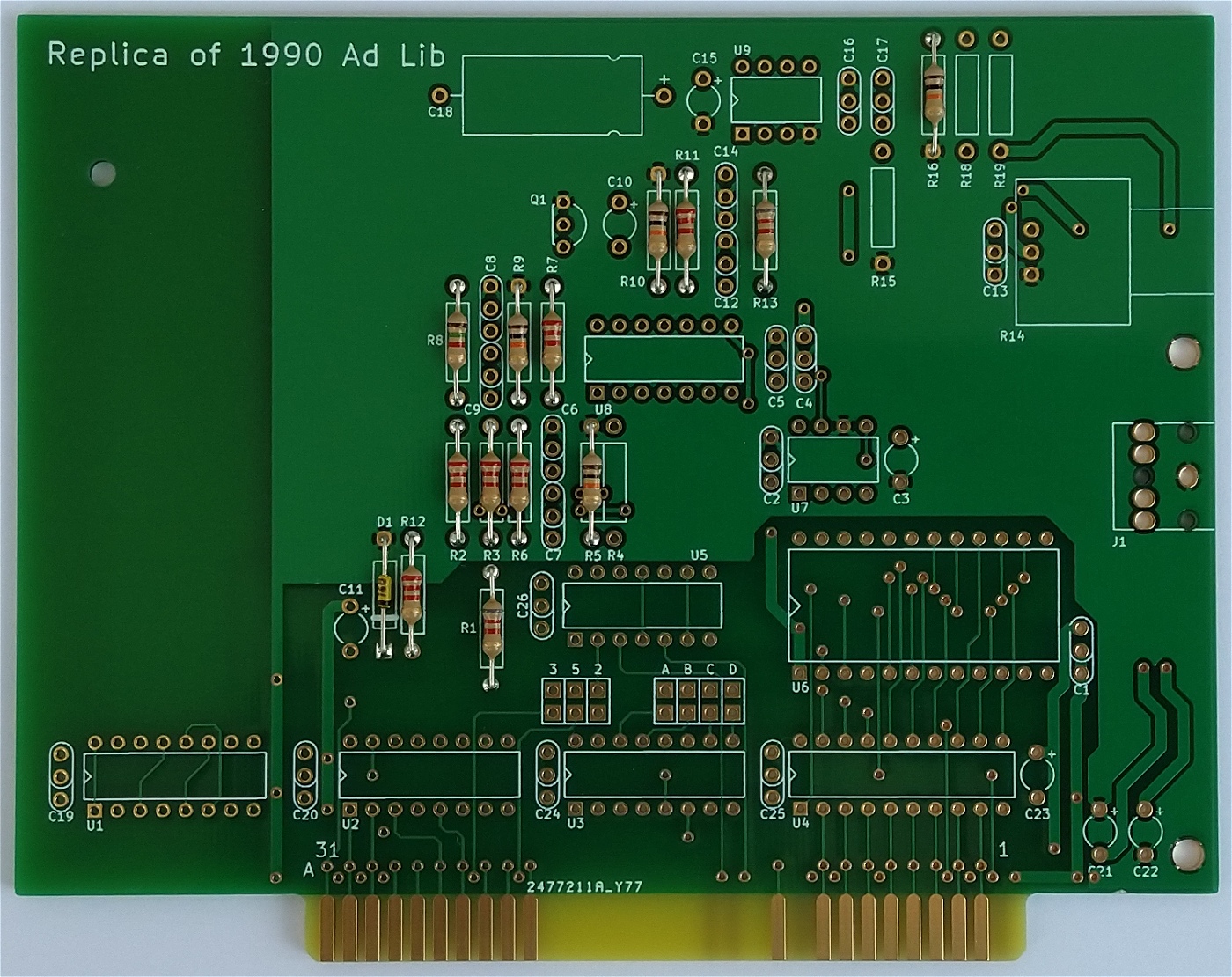

For now I am making visible progress with the soldering of the components.

I even installed an IRQ2 jumper albeit AdLib cards do not use any interrupt request lines at all. I will have to check whether there is any software out there making use of interrupts generated by an AdLib card. But in any case I will test whether the Yamaha YM3812 chip is even asserting the /IRQ line.

The other jumper sets the base address for the card, in this case 0x388h.

I would just like to mention that position D over the base address selector is already hardwired on the PCB. That means the jumper is redundant and the AdLib card will always be located at address 0x388h regardless of which address jumper I might set. In addition, setting any other position would short output 6 of the U3 address decoder to the respective output selected by the installed jumper. The original designer wanted to have some flexibility in base address selection. But he or she ended up just adding unfinished functionality on the AdLib PCB assembly. And apparently the clone PCBs carry this flaw nonetheless.

This design flaw can easily be corrected by cutting the hardwire trace on position D. But that would look ugly and most probably software is written for probing the AdLib card at address 0x388h only. For now the jumper on position D will remain set.

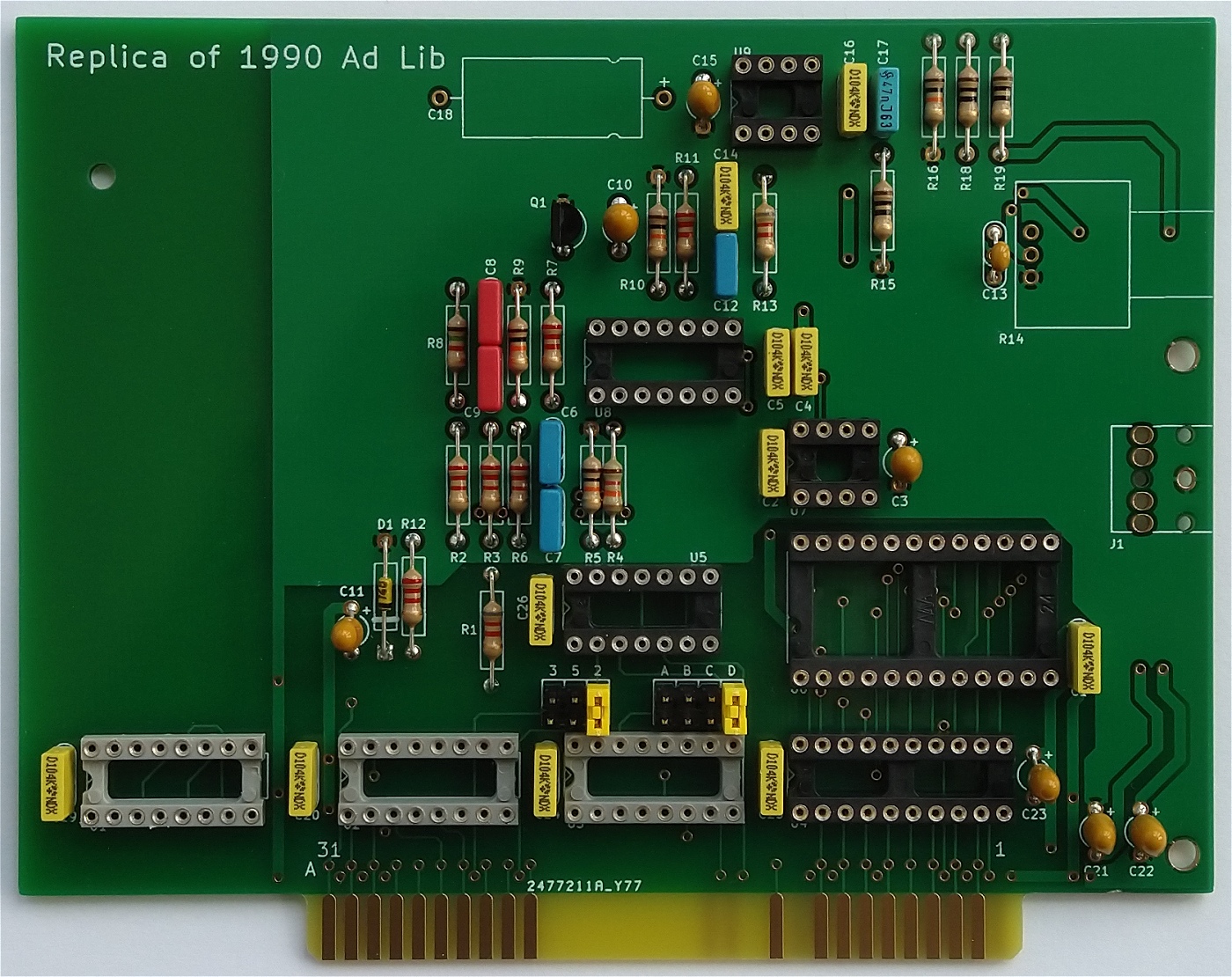

I have soldered almost all the remaining components on the card.

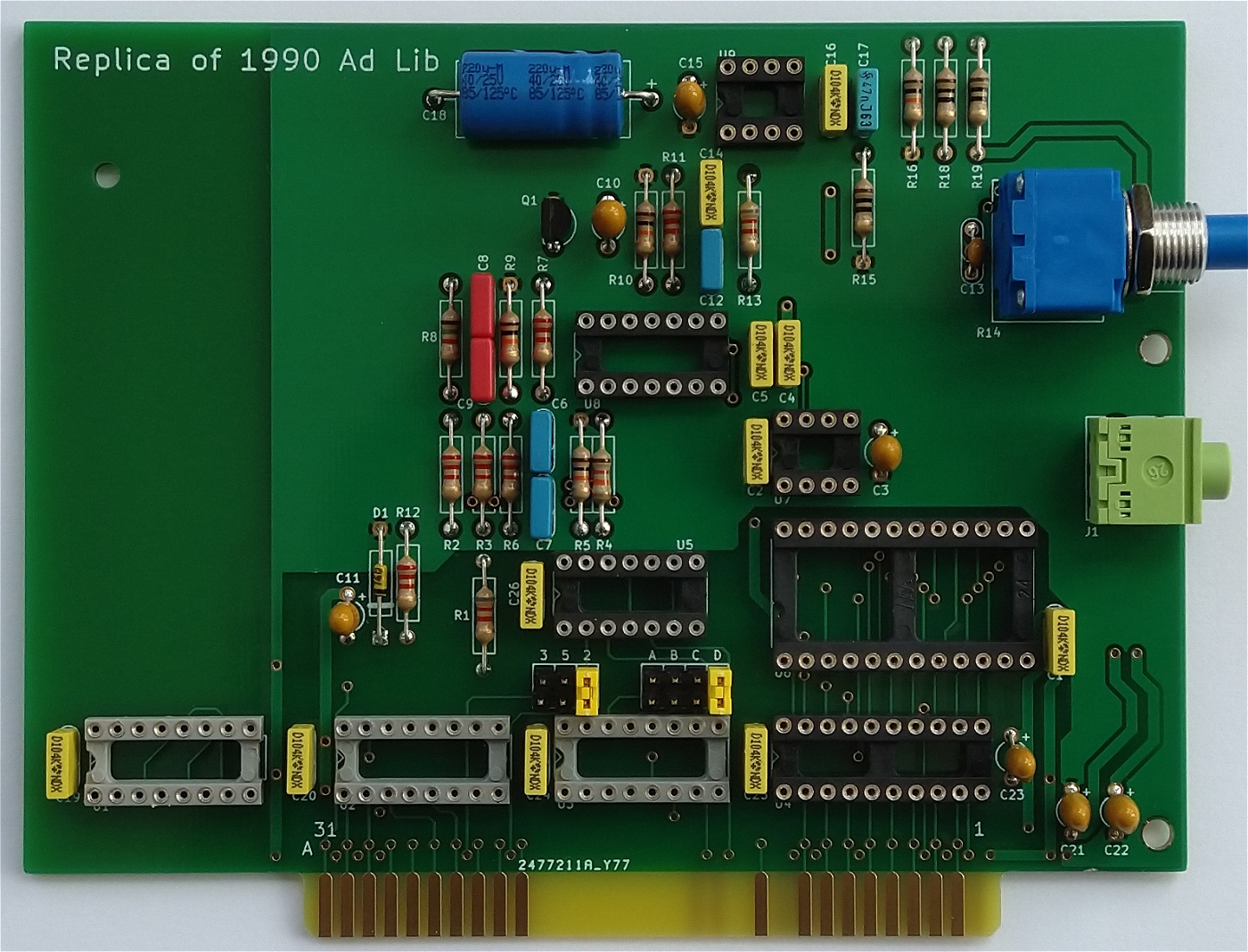

Next I soldered the electrolytic capacitor, the audio output connector, and the potentiometer.

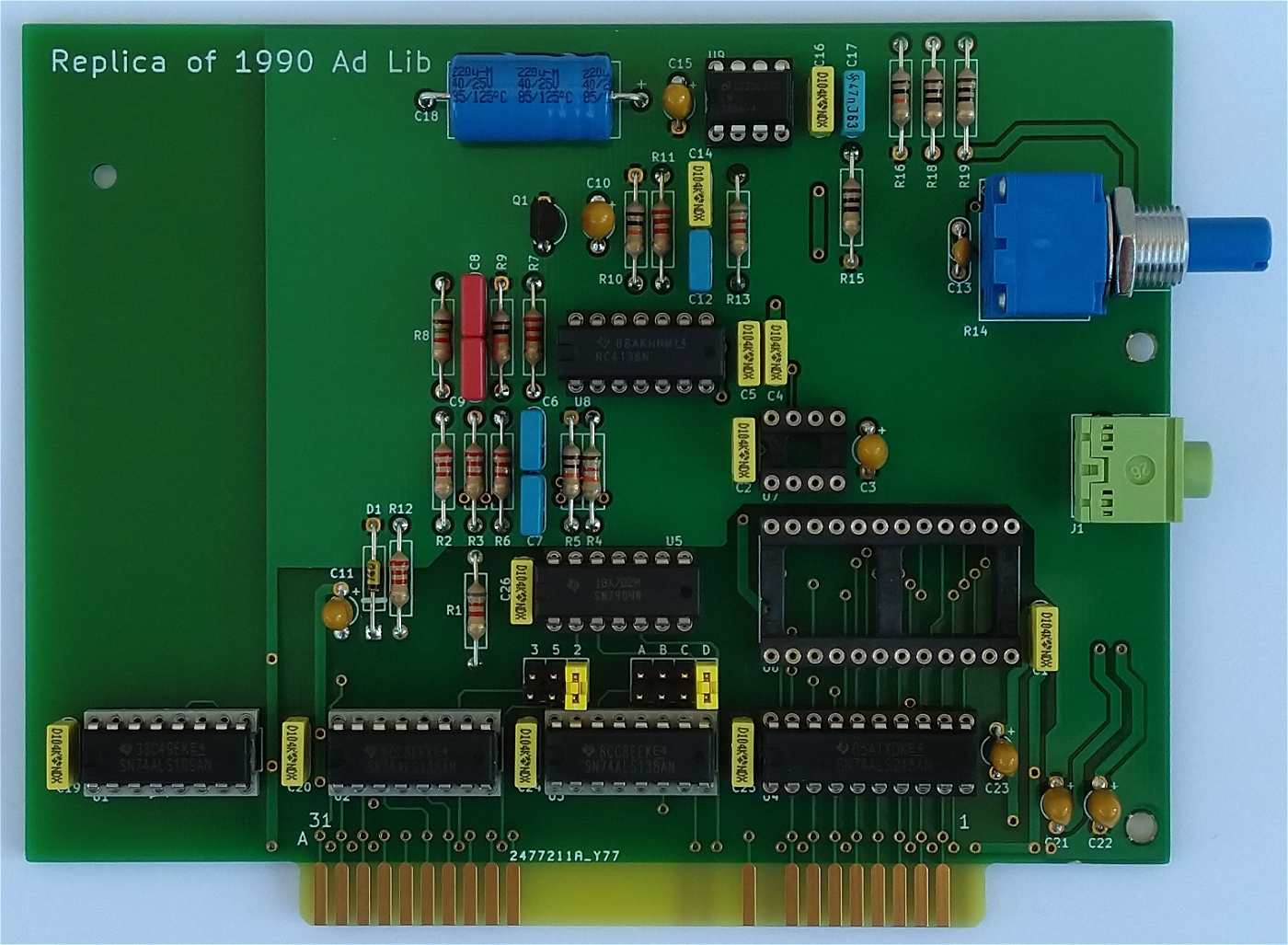

I inserted almost all of the integrated circuits in their respective sockets. I am still missing the Yamaha OPL2 chip and its associated digital to analog converter (DAC) IC.

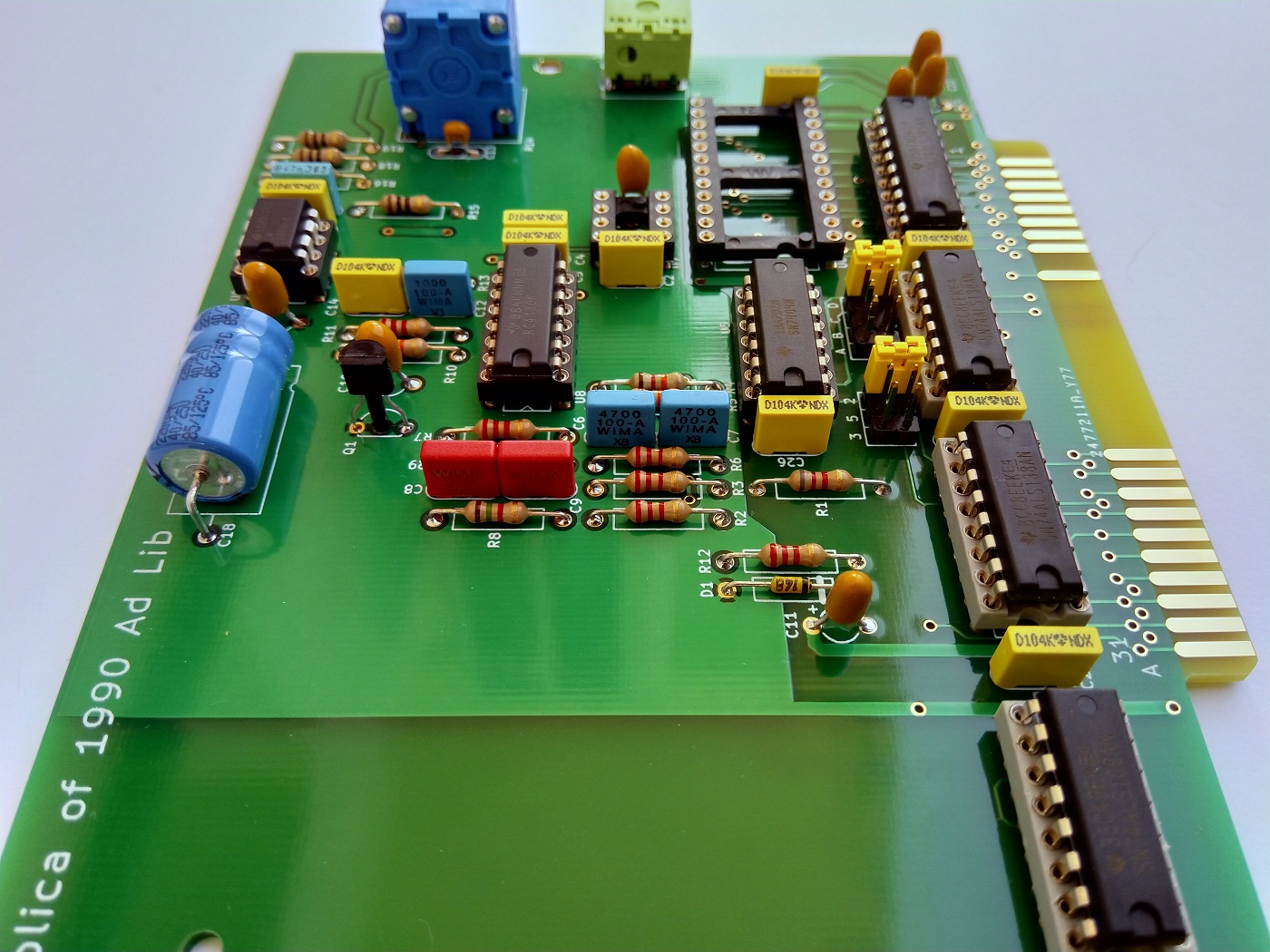

A picture of the assembled AdLib card from a different angle. It sure does look retro!

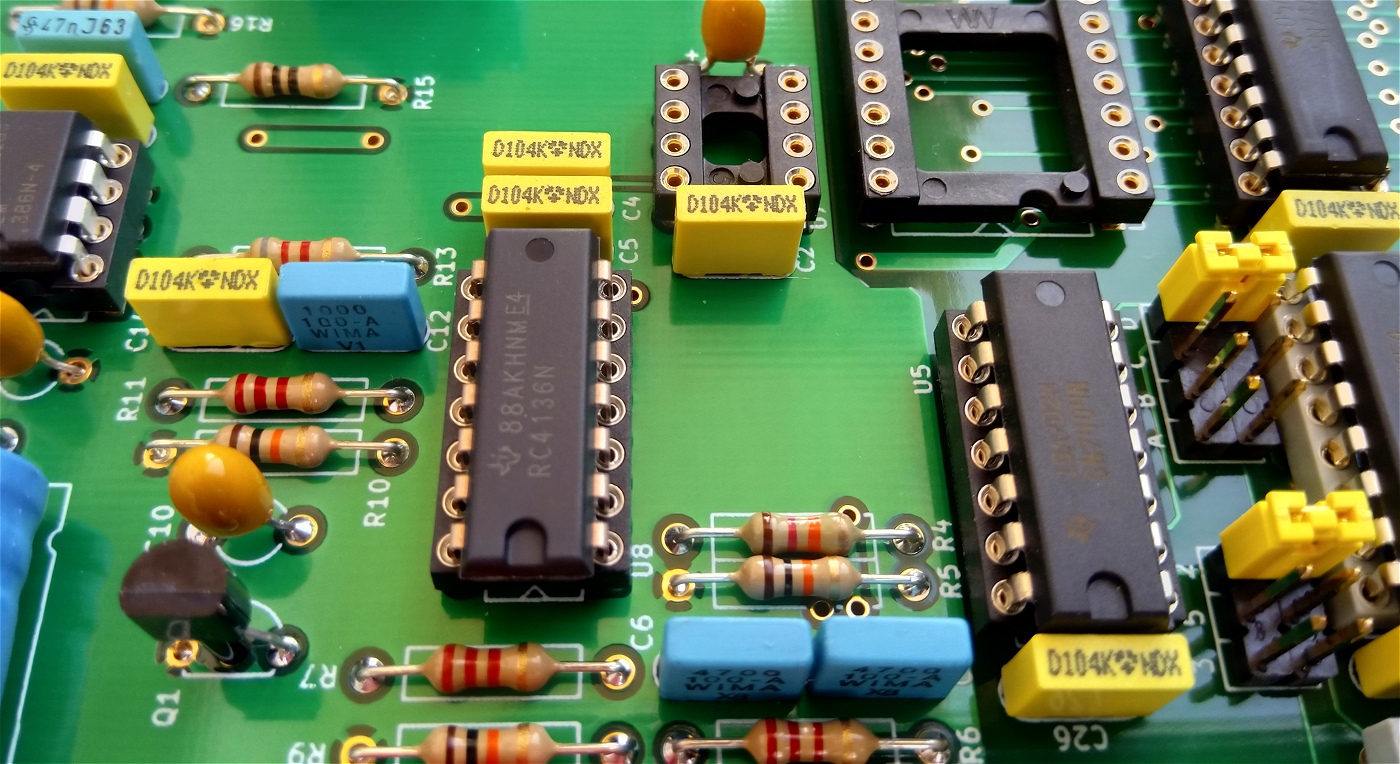

Detailed view. I don't know who is the manufacturer for the yellow film decoupling capacitors but the logo is interesting. I have a whole lot of them, all recovered from old industrial equippment.

Also at some point WIMA dropped the use of colored plastic cases for their film capacitors. Now they only offer them in red cases. In the past I have seen green (FKP - polypropylene film) and blue (FKS - polyester film) as well.

Many thanks to Eric Schlaepfer (TubeTime) that put a lot of work into replicating the original design. The project is also on GitHub. And thanks again Martin for the free PCB.
