Synopsis

Run-length limited was the natural progression in data encoding standards, increasing the storage capacity. These drives also use the two-ribbon cable host interface, similar to ST-506 (ST-412). RLL drives can be formatted with MFM controllers. The result is a bulletproof MFM drive system. In addition, some MFM drives can be formatted as RLL, increasing the usable platter capacity. But the resulting drive system might not be very stable.

Seagate ST-238R

This 5.25" half-height disk drive can be recognized in a system without opening its case. It makes a powerful weird noise when the spindle motor spins up and down. Once you hear that noise, you will not forget it. It's quite unique. This is an RLL disk drive that I bought in 2003 from a bazaar at a price of about $1. I also bought a Western Digital WD1004-27X for $1,5 and when I got home I mounted the whole disk drive system on a Unisys 286 / 10 MHz-based computer. After running the MS-DOS DEBUG.EXE program which I used to launch the embedded BIOS at address C800:5, I used FDISK.COM to partition the drive and then issued a FORMAT C: /U command.

Then I had a clean RLL disk drive with only 13 bad sectors. Luckily enough, those bad sectors were in the range of 1 Mb - 5 Mb of the disk, so I filled that portion with a dump file. After that, I installed MS-DOS 5.0 and Windows 3.1, a perfect pair.

I found the disk drive a little bit slower than I'd wanted, so I tried installing it on an AMD K6-II / 500 MHz computer equipped with a Soyo motherboard. I thought that the 8-bit ISA bus on the 286 was working at something less than 8 MHz, but I was wrong. Some BIOSes allowed for various ISA bus speeds, but this wasn't the case. The drive refused to work until I disabled the internal IDE host adapters (channel 1 and channel 2) and set the memory range of the controller: 324-327h: CA00-CBFFh. The disk was running a little bit faster (placebo? Definitely yes!) but what can you do when the actuator has a high latency? They claimed the internal transfer rate is 7.5 Mb/s. As for the external one, probably around a few hundred Kb/s at most.

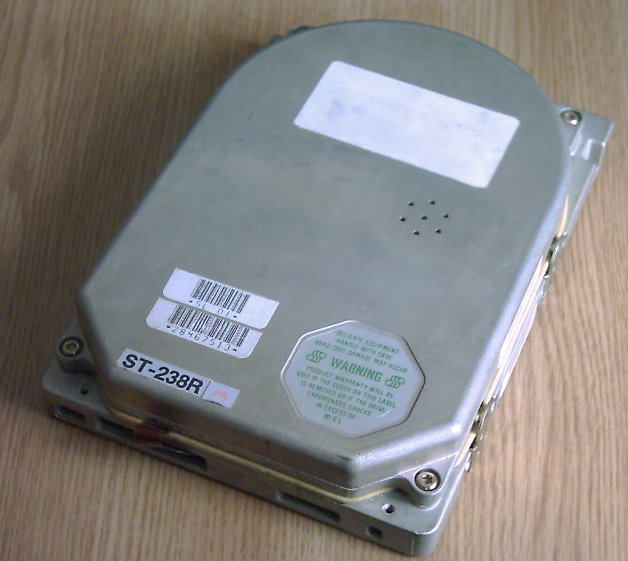

This is one of my favorite disk drives, so that's why I spent so many lines describing it. The picture says more about the visual aspect of the drive than I could say in words. I do like the way Seagate has built this drive. It has a nice shape, standard for the period, but looks a little bit outdated. Also, the green LED lights up way too bright.

I think this drive is from the last batch of RLL drives ever made by Seagate because mine is dated 1990. At the time, there were fast and large 50 Mb (and up) IDE and SCSI disk drives that easily outperformed these dinosaurs.

I still use this disk drive from time to time. I have noticed that the controller somehow remembers the drive parameters. So I keep using it on one of my 386 systems as well as on my 486 computer. I haven't been able to connect an IDE drive along with the RLL drive, maybe because I don't know how to see the memory range of the IDE host adapter on the 386/486 computer, but I successfully ran a SCSI disk drive along with this old RLL disk drive. That's the benefit of SCSI being a host adapter, not really a disk drive controller.

If you are into old storage media, and you can find such a drive, I'd recommend it, for sure. Although it may not be the best RLL drive out there, it still remains a reliable one, and you can easily get in the mood of those times while playing around with it. Mind the infernal spindle motor noise, that is.

TECHNICAL DATA
CAPACITY: 32.7 Mb
ACTUATOR TYPE: STEPPER
DISCS: 2
MEDIA TYPE: OXIDE
RECORDING METHOD: RLL 2,7
SPINDLE SPEED: 3,600 rpm
INTERFACE: ST-412 (RLL)
AVERAGE ACCESS: 65 ms
